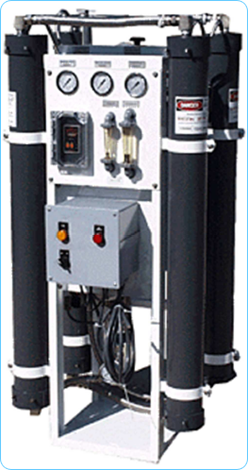

NABA International manufactures the Commercial Duty Seawater Desalination Systems to provide potable water from seawater for small communities, hotels, industrial applications, resorts, oil drilling platforms, and many other land based and marine applications. The units include multimedia filters, 5 micron cartridge, reverse osmosis unit, membrane cleaning system. The highest quality components have been selected for the rugged duty that will be required for the water purification applications.
| The Base Unit Includes | |
| Powder-coat MS SkidSS 316 Multi-Stage Centrifugal PumpHigh Rejection TFC MembraneFRP/SS Pressure VesselSediment Pre-filterMultigrade sand filter in FRPSS 316 high pressure piping | Concentrate Pressure GaugeAntiscalant dosing systemDigital flowmeterDigital conductivity meterHi/Low pressure switchesPressure gaugesSkin mounted control panel |
| Optional |
| RO Cleaning systemAuto flushing systemPLC controlspH indicatorORP Indicator |
| Specification |
| Minimum Salt Rejection: 99.6%Maximum Operating Pressure: 1000 psiMaximum Feed Salinity: 35,000 ppm TDS @ 25°C |
Technical Specification
| Model | Flow rate LPH | No. of Elements | Size | Recovery | Power (HP) |
| SWRO-500 | 500 | 3 | 4″ x 40″ | 20% | 15 |
| SWRO-750 | 750 | 5 | 4″ x 40″ | 30% | 15 |
| SWRO-940 | 940 | 6 | 4″ x 40″ | 16% | 20 |
| SWRO-1260 | 1260 | 8 | 4″ x 40″ | 21% | 20 |
| SWRO-1500 | 1500 | 3 | 8″x 40″ | 30% | 25 |
| SWRO-2300 | 2300 | 4 | 8″x 40″ | 30% | 30 |
| SWRO-3400 | 3400 | 6 | 8″x 40″ | 35% | 30 |
| SWRO-4600 | 4600 | 9 | 8″x 40″ | 35% | 50 |
